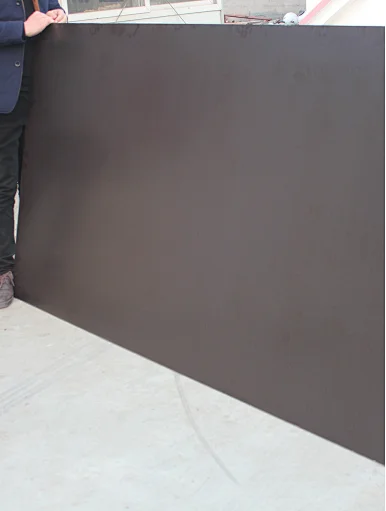

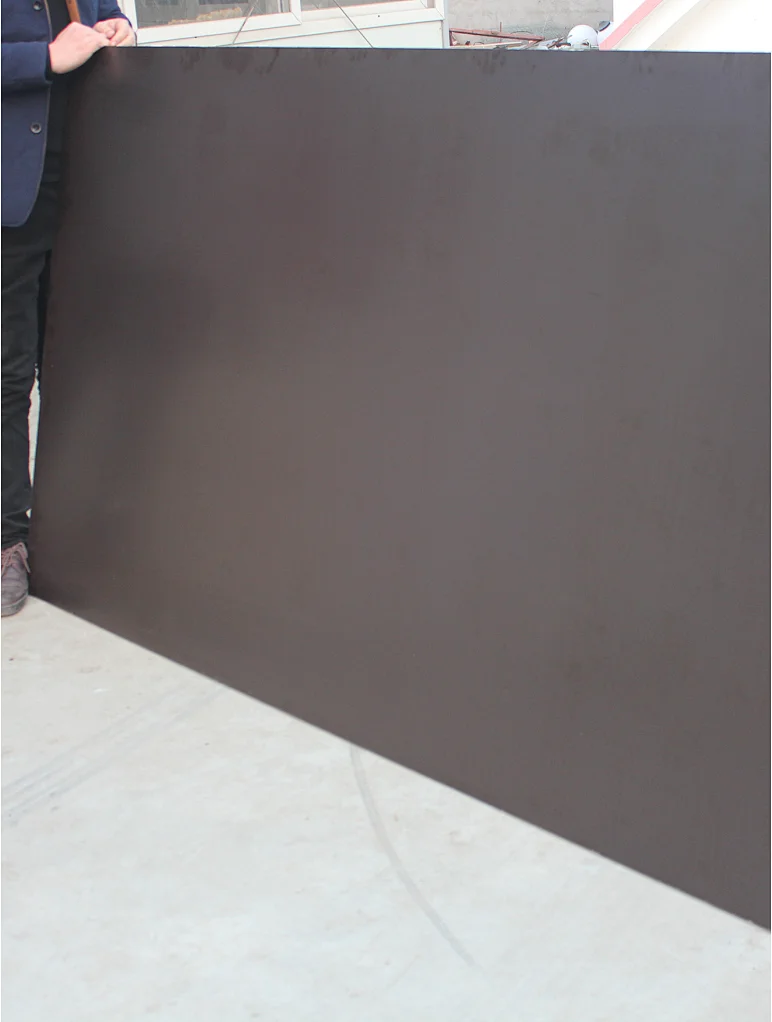

Film Faced Plywood Film Faced Plywood
Film Faced Plywood
Structural Formply
Size:17mmx1200mmx1800mm
17mmx1200mmx2400mm
Standard: AS6669
Stress Grade: F17
Size:17mmx1200mmx1800mm
17mmx1200mmx2400mm
Standard: AS6669
Stress Grade: F17
Sheet Size
1800mm x 1200mm x 17mm
Quantity
Film Faced Plywood
| Layers positioning | Parallel and perpendicular Film faced plywood |
| Sheet Size | 1800mm x 1200mm x 17mm |
| Sheet thickness | 17mm +/-4% |
| Sheet length | 1800mm+/-1.5mm |
| Sheet width | 1200mm +/-1.5mm |
| Sheet squareness | ≤ 3mm |
| Sheet straightness | ≤ 1mm |
| Sheet flatness | ≤30mm |
| Edge finish | No missing veneer permitted, clean cut and square to the face |
| Stress Grade | F17 Film Faced Plywood |
| Plywood to comply to | AS/NZS 6669 Standard |
| Tolerances as per | AS/NZS 2269 |
| Veneer Quality | Grade CC,C Grade(Face) and C Grade (Back), “Enduring” profile both sides |
| Finish | Durable phenolic impregnated film with density: 120g/㎡ |
| Finish Class | Class 2, face & back |
| Film Color | Dark Brown or Black |
| Moisture Content | 6%-15% |
Rooge Wood Film Faced Plywood
