F17 Film Faced Plywood for Australian market
F17-04

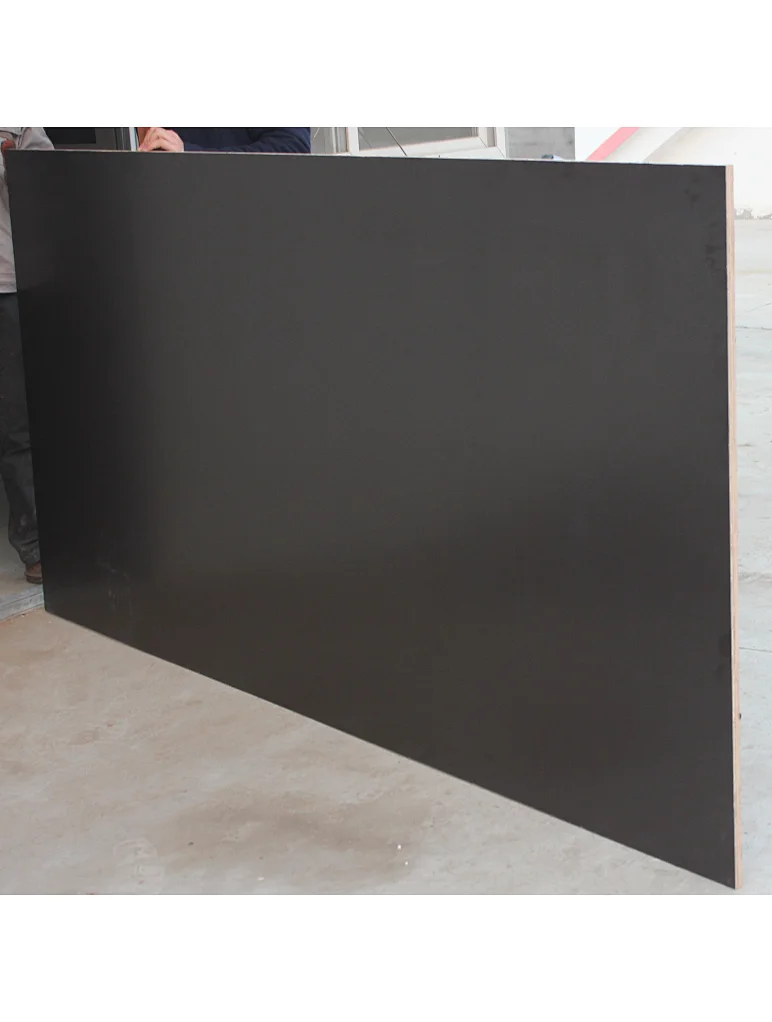

ROOGE F17 Formply
F17 Formply – 2400mm (height) x 1200mm (width) x 17mm (thick)
Structural- Hardwood Core
Double Sided Film Face with sealed edges
WBP Glue ( Water Boil Proof ) – A Grade bonding
Used for: Hoarding, Form working, Construction and General DIY Building.
Meets Standards: AS 6669:2016 Plywood – Formwork
F17 Formply – 2400mm (height) x 1200mm (width) x 17mm (thick)
Structural- Hardwood Core
Double Sided Film Face with sealed edges
WBP Glue ( Water Boil Proof ) – A Grade bonding
Used for: Hoarding, Form working, Construction and General DIY Building.
Meets Standards: AS 6669:2016 Plywood – Formwork
Quantity
F17 formply 1800x2400x17mm
Sheet Size: 2400mm x 1200mm & 1800mm x 1200mm
Thickness: 17mm
Thickness Tolerance: +/-0.5mm
Width Tolerance: +3.5mm/-0mm
Length Tolerance: +3.5mm/0mm
Diagonal Tolerance: +/-2mm
Moisture Content: 8-14%
Glue: ‘A’ Bond(Synthetic phenol formaldehyde, natural polyphenol formaldehyde or resorcinol formaldehyde)
Film Faced Plywood 1200x2400x17mm
F17 formply 1800x2400x17mm
Grade: F17 structural (must comply with AS6669-see Table 1.1)
Face/Back: Black Film with No Logos
Standard: AS6669 (Face or Side of sheet to be stamped as per Standard)
Core Species: Eucalyptus or Birch
Film Faced Plywood 1200x2400x17mm
F17 formply 1800x2400x17mm
Face/Back Specifications
Front Face Black Film Face with No Logos
Rear Face Black Film Face with Brand/Stamp as per AS6669(example Appendix 1.1)
Ply’s per Sheet Pack Size
2400x1200x17mm 11 ply 2400x1200x17mm 50 sheets
1800x1200x17mm 11 ply 1800x1200x17mm 40 sheets
Film Faced Plywood 1200x2400x17mm
1F17 formply 800x2400x17mm

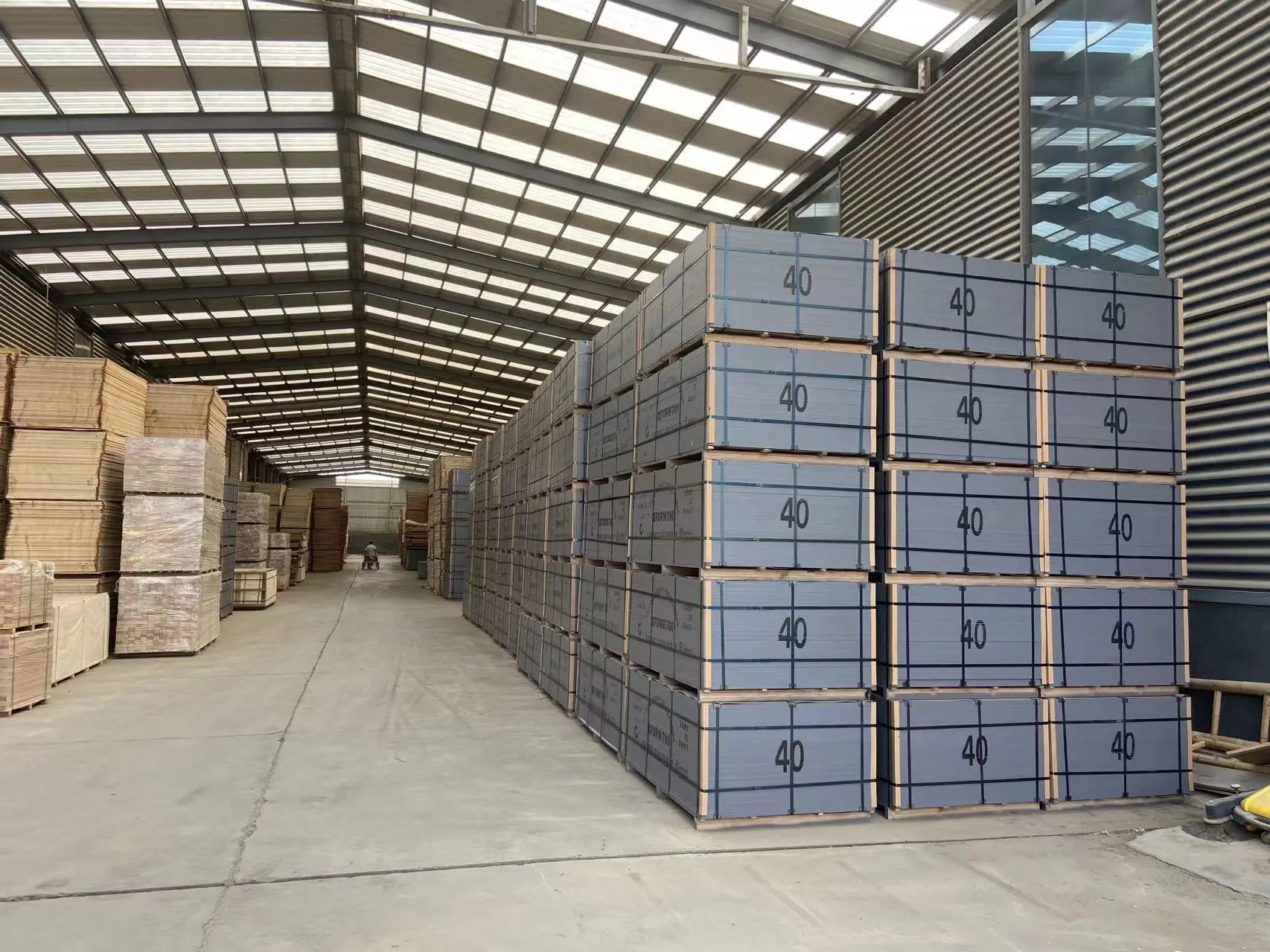

Packaging
- Top and Sides to be Covered with Thin Plywood or Equivalent
- 4x60mm High Gluts
- PET Strapping only
- Cardboard or Plastic corners under strapping on the edges
- Logo to be applied to all long sides of packs (see Appendix 1.2)
F17 formply 1800x2400x17mm
